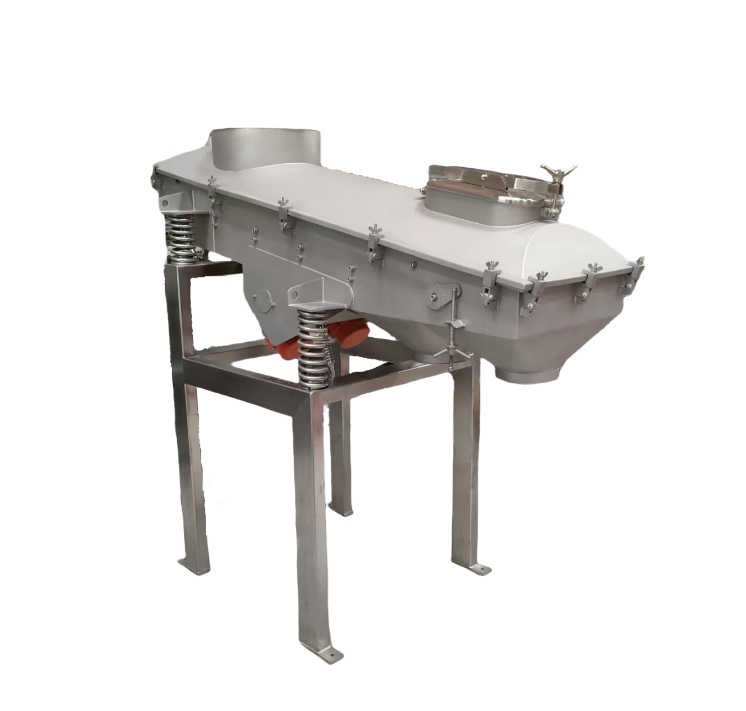

Linear screen/oblique vibrating screen
Classification:
Key words:
Product Details
Equipment Description:
Using Two vibration motors rotate synchronously in opposite directions. The centrifugal force generated by their eccentric blocks cancels each other out in the direction parallel to the motor axis, while adding up in the vertical direction to form a resultant force. This force compels the screen box to vibrate along a linear trajectory. The motor axis is at a certain angle (usually 15°–35°) to the screen surface. Combined with the resultant force of the exciting force and the material's gravity, this pushes the material to move. The material on the screen surface is subjected to periodic exciting force, is thrown up, and moves forward in a jumping manner, forming a continuous linear motion trajectory. Fine particles penetrate the screen holes due to inertia and become the undersize material, while coarse particles move along the screen surface to the discharge port.
By adjusting the vibration frequency, amplitude, and screen angle, the material residence time and screening probability are controlled to adapt to materials with different bulk densities or particle sizes.
Equipment Features:
- Fully Enclosed Structure: The screen box uses a sealed design to effectively prevent dust from spilling, meeting the cleanliness requirements of food processing.
- Modular Structure: The screen mesh and screen body are designed with a modular structure, supporting quick replacement of the screen mesh for convenient maintenance.
- High Screening Efficiency: Driven by dual vibration motors, it generates high-intensity linear vibration, causing the material to move forward quickly in a jumping manner, resulting in high screening efficiency.
- Low Energy Consumption and High Productivity: The vibration motor has low energy consumption. Coupled with large-diameter steel spring support, the vibration is strong and the operation is stable, resulting in a large processing volume per unit time.
- Strong Adaptability: By adjusting the vibration frequency, amplitude, and screen angle, it can adapt to materials with different humidity, viscosity, or particle sizes.
Equipment Parameters:
1. Screen Mesh Size: 8-12 mesh
2. Production Capacity: 1-2 tons
3. Equipment Weight: 430kg
4. Equipment Power: 0.6w
5. Dimensions: 2270*1000*1670mm
6. The entire equipment is made of 304 stainless steel, with a sandblasted surface for a beautiful appearance.
